| А | В | С | |||||||||||
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/2*1/2 | 4 | IXC | U 66-67 U 501-502 |
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/2*1/2 | 4 | IXC | U 68 U 125-131 U 153-158 U 503-512 |
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 4 | IXC | U 513-524 |
| 2 | 2 | 4 | 7 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 4 | IX C/40 | U 525-532 |
| 2 | 2 | 4 | 6 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/2*1/2 | 2 | IXC | U 159-160 U 171-176 |
| 2 | 2 | 4 | 6 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 2 | SX C/40 | U 183-194 U 533-550 U 841-846 U 853-858 U 865-870 U 877-881 U 889 U 1221-1235 |
| 2 | 3 | 5 | 15 | 1/2 | 4 | 1 | 7 | 1/2*1/2 | 4 | IXC | U 161 и 163-164 | ||
| 2 | 3 | 5 | 14 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 4 | IXC | U 162 | ||
| 2 | 3 | 5 | 15 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 2 | IXC | U 165-166 | ||
| 2 | 2 | 4 | 14 | 1/2 | 4 | 1 | 7 | 1/2*1/2 | 2 | IX C/40 | U 167-170 U 801-806 | ||
| 2 | 26 | 2 | 1 | 7 | 1/2 | 4 | 1 | 7 | 1/4*1/2 | 2 | IXС | U 172 | |
| 2 | 26 | 2 | 1 | 7 | 1/2 | 4 | 1 | 7 | 2 | IX c/40 | U 183, 185 | ||
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 | 1 1/2 | 1 | 7 | 1/2*1/2 | 4 | IXC | U 507, 510 |
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 3 | 1/2 | 1 1/2 | 7 | 1/4*1/2 | 4 | IXC | U 513 (Bb) |
| 2 | 3 | 5 | 7 | 1 | 7 | 1/2 1/2 1/2 | 1/2 1 | 2 1/2 | 7 | 1/4*1/2 | 4 | IXC | U 523 (Stb.) |

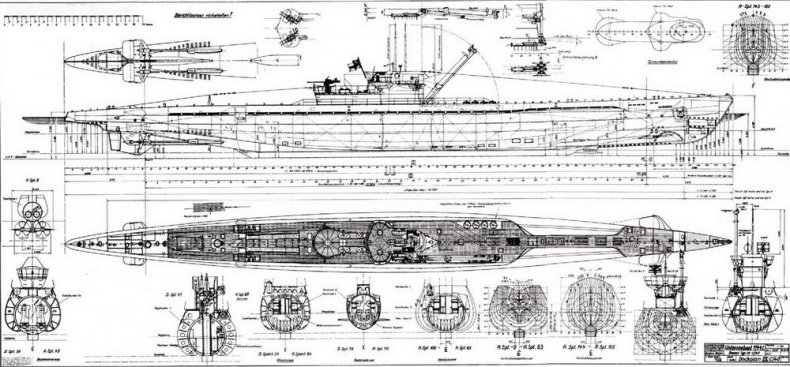

Чертёж серии IXС/40 для дока

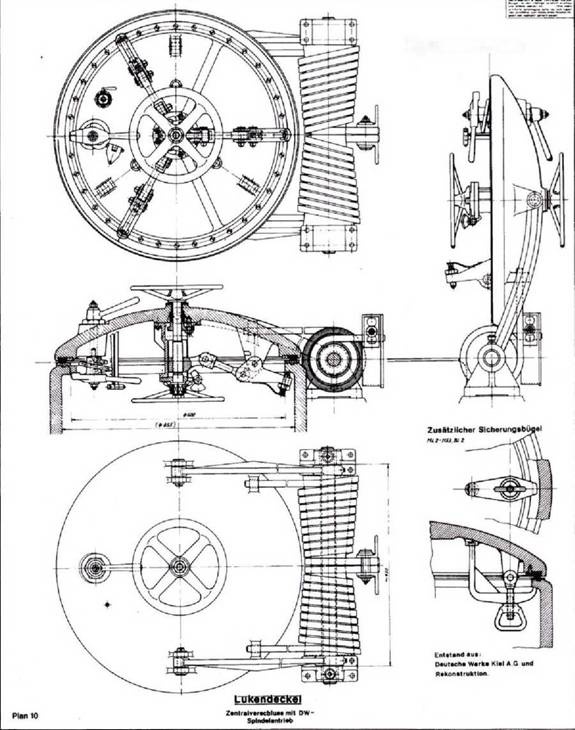

Крышка люка

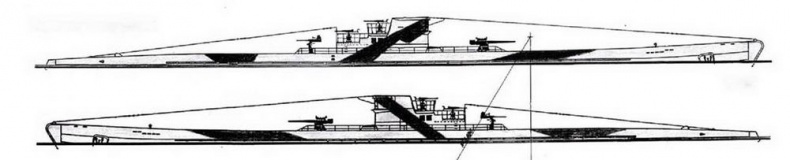

Вариант камуфляжа U 532
